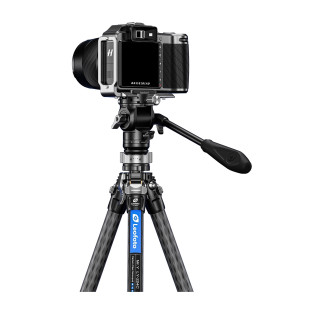

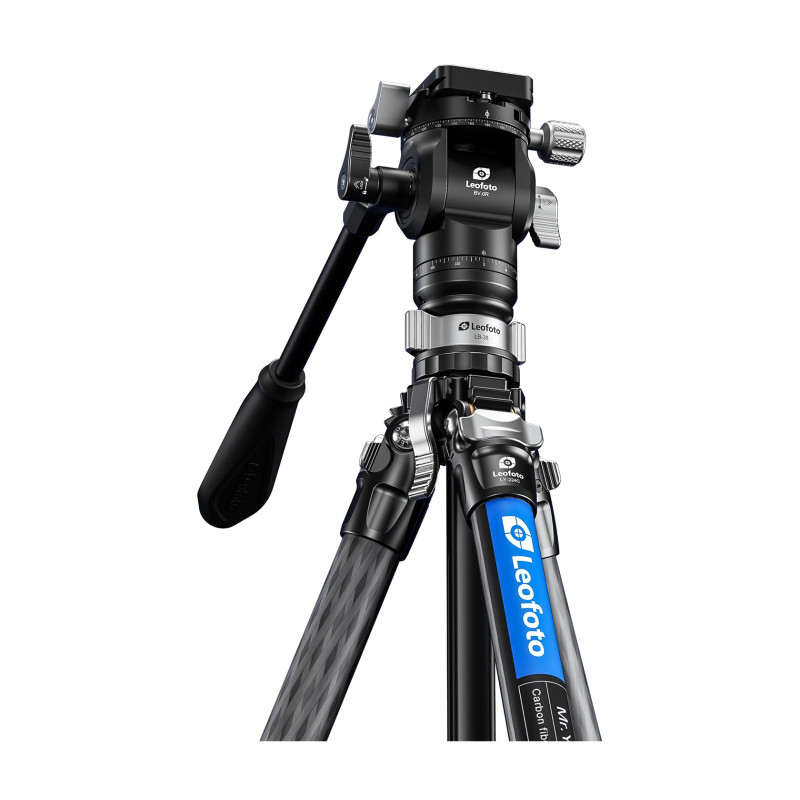

Leofoto LY-224C+BV-0R+LB-38 (Black) Y-shape carbon fibre tripod with fluid video head
$232.24
Leofoto LY-224C+BV-0R+LB-38 (Black) photographic tripod with 4-section carbon fibre legs from the Y-shape series. Weight 1.24 kg, load 3 kg, max height 142 cm. 10-year warranty.
Secure Payment
Fast Shipping
Easy Returns
LY-224C+BV-0R+LB-38 (Black)
Y-shape tripod — smaller folded size
Video kit with smooth fluid head.
Video kit with smooth fluid head.
Carbon fibre legs, aircraft-grade aluminium machined on CNC to 0.01 mm tolerance make a tripod that carries up to 3 kg at a weight of only 1.24 kg. Premium finish in every detail, Arca-Swiss compatibility and a 10-year warranty are what set Leofoto products apart.
1.24 kg Weight
49 cm Folded length
3 kg Load capacity
142 cm Max height
Y-shape build — compact column
Smaller folded size, same stability
The Y-shaped centre column lets the legs fold closer together. The tripod fits into a smaller package without compromising rigidity.
10-layer carbon fibre
Rigid. Light.
10 layers of Toray carbon in a rhombus structure. The construction damps vibration, carries 3 kg of gear at its own weight of 1.24 kg.
4 sections, twist-lock
Setup in seconds
A quarter-turn locks each section. 22/19/16/13 mm sections with anti-rotation system — all deploy at once without spinning.
Independent leg angles
Stable on any terrain
Three leg angles (23°/55°/85°) let you work on uneven ground, in tough conditions, close to the ground. Impact-resistant carbon spider.
Built for video
Travel photography
The Y-column folds tighter than a standard one — a shorter package.
Landscape photography
Stability for landscapes despite the compact build.
Macro in the field
Low minimum height — shots right above the ground.
Specifications
| Model | LY-224C+BV-0R+LB-38 (Black) |
| Series | Y-Series |
| Construction material | Carbon fibre |
| Carbon layers | 10 (Toray) |
| Leg sections | 4 |
| Leg tube diameter | 22/19/16/13 mm |
| Section lock type | Twist-lock (quarter turn) |
| Leg angles | 23° / 55° / 85° |
| Max height (with column) | 142 cm |
| Min height | 14 cm |
| Folded length | 49 cm |
| Kit weight | 1.24 kg |
| Tripod load capacity | 3 kg |
| Platform mount | 3/8"-16 thread |
| Anti-rotation system | Yes (all sections) |

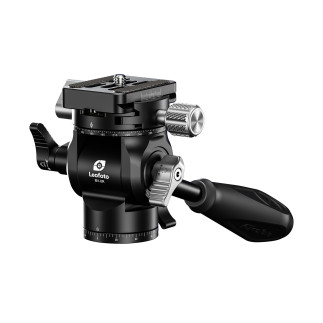

| Head included | BV-0R |
| Manufacturing | Aircraft-grade aluminium, CNC machined to 0.01 mm |
| Manufacturer warranty | 10 years (Leofoto) |
| Store warranty | EU warranty, dispatch from EU warehouse |
In the box
- Tripod LY-224C
- Fluid video head BV-0R
- Arca-Swiss quick release plate
- Allen wrench set
- Pan bar
- Transport bag
- User manual
11976
Data sheet
- Leofoto series
- Y-Series
- Construction material
- Carbon fibre
- Weight
- 1
1.24 kg - Maximum load
- 3 kg
- Maximum height (with column)
- 142 cm
- Minimum height
- 14 cm
- Folded length
- 49 cm
- Number of leg sections
- 4
- Leg section diameter
- 22/19/16/13 mm
22/19/16/13 mm - Included head
- BV-0R
